LED Modules

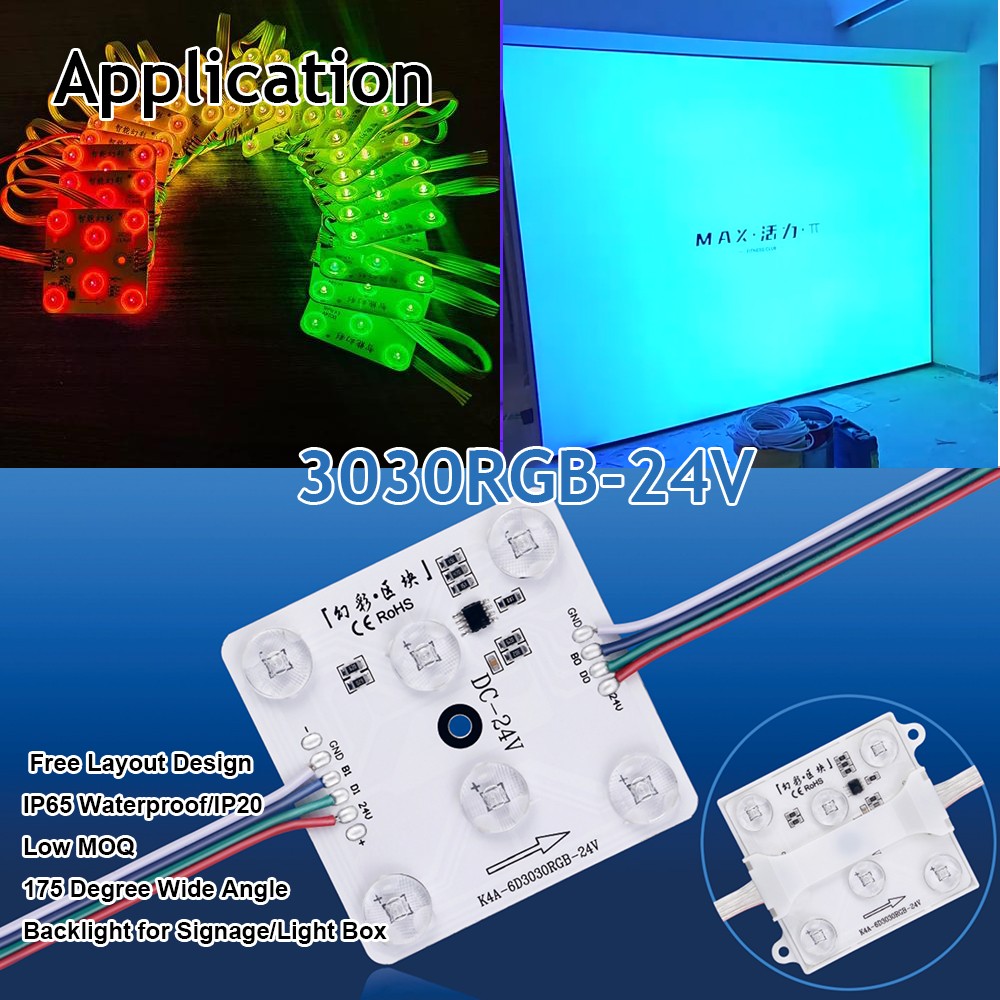

Product Parameters (English Version)

### Core Electrical Parameters

1. Voltage: 24V DC (Low voltage design with ultra-low voltage drop)

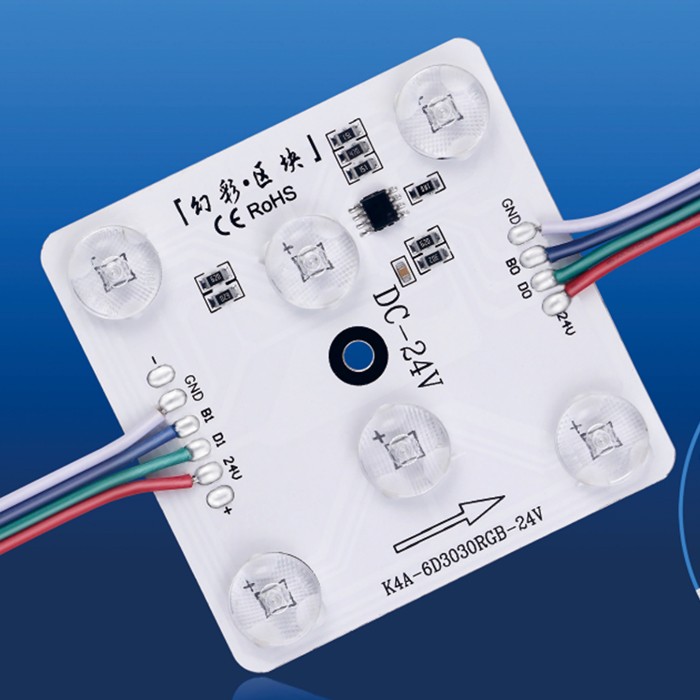

2. LED Specification: SMD 3030 LEDs (6 LEDs per module, 3W per piece)

3. Control Related: Built-in 16703 IC (supports break-point continuous transmission), compatible with DMX512 control protocol

4. Luminous Parameters: 175° wide beam angle, uniform light

### Product Feature Parameters

1. Protection Level: IP65 (Waterproof, suitable for indoor and outdoor use)

2. Operability: Cuttable, flexible splicing, suitable for irregular light boxes

3. Performance Guarantee: No dead pixels, stable performance and maintenance-free

4. Warranty Period: 2-year warranty

### Certification

Product Certification: CE, RoHS, UL Certification
